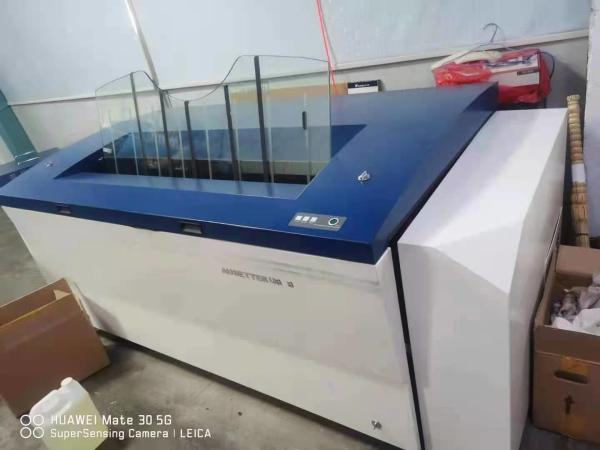

UV CTP Computer To Conventional Plate Machine 405nm Automatically

Brand Name : PLATE-CD

Model Number : T8128

Place of Origin : SHENZHEN

MOQ : 1

Price : $13000-$23000

Payment Terms : T/T

Supply Ability : 20 units/month

Delivery Time : 8 days

Packaging Details : Standard export wooden box

Transmission status : automatic transfer to the processor

Minimum plate output thickness : 0.15

Plate maximum output size : 1130*880mm

Weight : 1150KG

plate : CTCP PLATE

Output resolution : 2400dpi

Contact Now

CTCP plate to machne ,CTCP printing machine ,UVCTP plate machne ,offset plate to machine ,plate to offsrt machine

A conventional computer plate-making machine requires a 50-square-meter room to place the machine. Keep the interior clean and tidy at all times.

Brand new machine, two years warranty, all parts are factory made.

Resolution: 2,400dpi or 1,200dpi optional 2,540dpi or 1,270dpi (variable resolution option: the highest precision can reach 12,800dpi in the circumferential direction)

Repeatability: ±0.01mm

Output interface: optical fiber interface

Environment: allowable temperature: 15-32℃, recommended temperature: 21-28℃, relative humidity: <70%

Different models of machines have different production times and speeds.

Model Thermal UV
T824 T832 T848 T864 T8128 U824 U832 U848 U864 U8128
NO.of lasers 24 32 48 64 128 24 32 48 64 128
Throughput(1130*800) 13 18 23 28 45 13 18 23 28 45
Max.Min.Format MAX:1160*940 MIN:400*350 MAX:1160*940 MIN:400*350
Laser source 830nm 405nm
Resoiution 2400DPI
Loading system Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement CD. 0.15-0.4 (Thermal plate) CD. 0.15-0.4 UV plate
Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60HZ 5.5KVA
Work environment Temperature:20-25℃,Humility:40%-80%
